Tenzir Platform v1.10: Restructured Layout and Static Workspaces

· 5 min read
Benno Evers

Today, we're releasing Tenzir Platform v1.10, which introduces a restructed page layout and the ability to statically define workspaces in on-prem environments.

Restructured Nodes Page​

This release reorganizes the page layout to improve usability and provide a clearer overview of the current state of a Tenzir Node.

We combined the Explorer, Pipelines, and Contexts tabs into a single, top-level Nodes tab. Additionally, we moved the Installed Packages tab from the library into this new Nodes page.

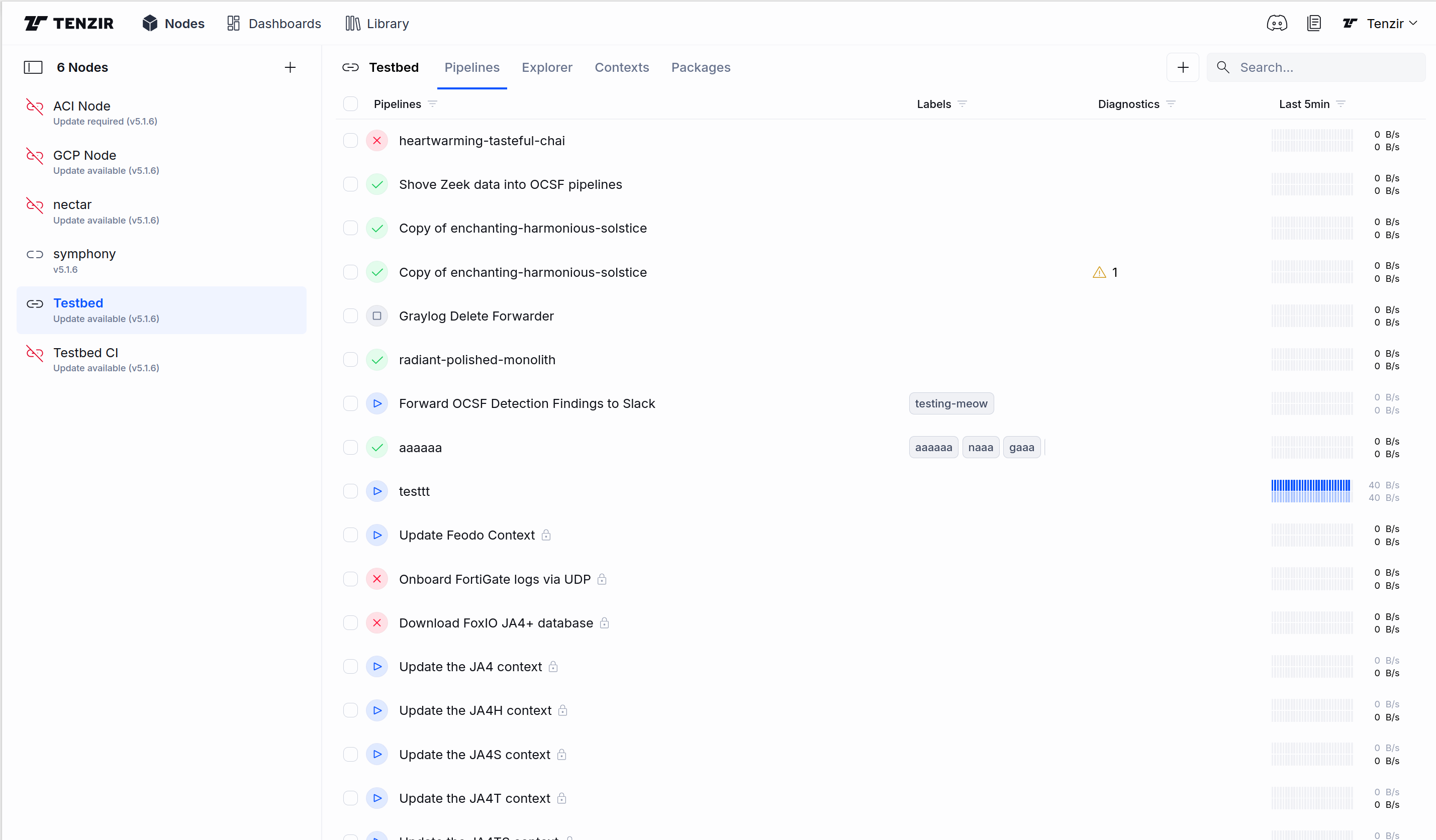

Nodes Page Layout

All node-related information is now consolidated on a single page, making it easier to access at a glance.

We plan to add more utilites to the nodes page soon, providing deeper insights into the state of your fleet.

We also redesigned the library, allowing you to filter by the subcategories Sources, Destinations, Mappings and Contexts.

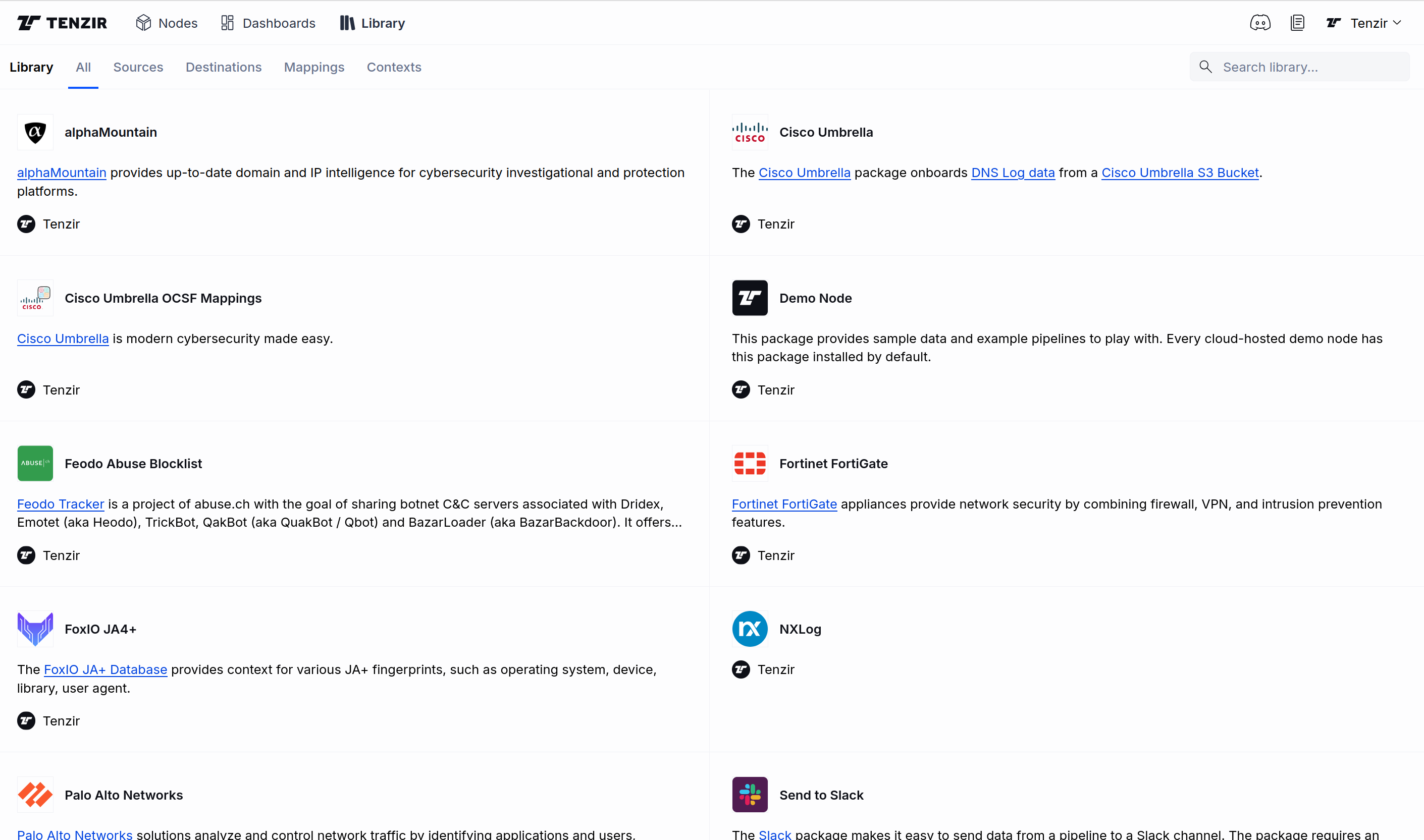

Library Page Layout

This makes it easier to find exactly the package you're looking for.

Static Workspaces and Ephemeral Nodes​

Sovereign Edition users can now define workspaces in a static configuration provided to the Tenzir Platform instance.

---
workspaces:
  static0:
    name: Tenzir
    category: Statically Configured Workspaces
    icon-url: https://storage.googleapis.com/tenzir-public-data/icons/tenzir-logo-square.svg
    auth-rules:
      - {"auth_fn": "auth_allow_all"}
Generating Auth Rules

Use the new print-auth-rule CLI command to easily generate auth rules in the correct format. For example, to get the rule above you can run tenzir-platform tools print-auth-rule allow-all.

The platform service in a Tenzir Platform deployment uses the WORKSPACE_CONFIG_FILE environment variable to locate the static workspace configuration file.

# docker-compose.yaml
services:
  platform:
    environment:
      # [...]
      - WORKSPACE_CONFIG_FILE=/etc/tenzir/workspaces.yaml
    volumes:
      - ./workspaces.yaml:/etc/tenzir/workspaces.yaml

Ephemeral Nodes​

You can define a workspace token for statically configured workspaces. This shared secret allows any Tenzir Node with the token to connect to the workspace.

workspaces:
  static0:
    token: wsk_e9ee76d4faf4b213745dd5c99a9be11f501d7009ded63f2d5NmDS38vXR

Please note that a valid workspace token must follow a specific format. To obtain a suitable token for your workspace, use the tenzir-platform tools generate-workspace-token command.

Instead of writing out the workspace token in plain text, you can specify a file that contains the token:

workspaces:
  static0:
    token-file: /run/secrets/workspace_token

A Tenzir Node can register itself at the Tenzir Platform dynamically if it knows the workspace token:

$ cat config.yaml
tenzir:
  token: wsk_e9ee76d4faf4b213745dd5c99a9be11f501d7009ded63f2d5NmDS38vXR
  platform-control-endpoint: http://tenzir-platform.example.org:3001

$ tenzir-node --config=config.yaml

Nodes connected this way are treated as ephemeral, meaning they're not permanently added to the workspace but will disappear as soon as the connection ends.

Static Dashboards​

You can define a static set of dashboards for a workspace. To do so, use the dashboards YAML key:

workspaces:
  static0:
    dashboards:
      dashboard1:
        name: Example Dashboard
        cells:
          - name: Dashboard 1
            definition: |
              partitions
              where not internal
              summarize events=sum(events), schema
              sort -events
            type: table
            x: 0
            y: 0
            w: 12
            h: 12
Dashboard Coordinates

Dashboards are arranged in a virtual grid of width 24. Ensure that x + w <= 24 when setting dashboard coordinates.

While it is possible to update dashboards defined like this at runtime, they reset to their original state every time the platform restarts.

Other Changes​

Infrastructure​

  • We improved the localdev example setup for the Tenzir Platform. It now contains a Tenzir Node that is automatically connected to the local platform instance and a CLI container with admin permissions. Additionally, users of the localdev setup are now granted admin permissions by default.
  • We fixed a bug in the alerts API that caused configured alerts to be only activated after the next restart of the websocket gateway.
  • The new TENZIR_PLATFORM_METRICS_STORE_S3_BUCKET_NAME variable can be set to a valid S3 bucket name. If set, the platform stores all pipeline metrics it receives from connected Tenzir Nodes into this bucket.

Frontend​

  • The URL format was changed and now contains the workspace id, making it easier to share Tenzir Platform URLs with other users. NOTE: There is no automatic redirect, so old pipeline share url will not work anymore.
  • The y-axis ticks for stacked area and bar charts were fixed.
  • Fixed rendering of blobs in the Data.Blob component.
  • Added BITZ and TQL as downloadable formats for events.
  • Fixed an issue where pie chart colors were sometimes incorrect in the dashboard.

CLI​

  • We replaced the --dry-run option for the tenzir-platform admin add-auth-rule commands with the new tenzir-platform tools print-auth-rule commands.
  • The Tenzir Platform CLI now automatically authenticates using the client credentials flow when a client secret is provided as environment variable.
  • The Tenzir Platform CLI now supports device code flow authentication for IdP's without a complete verification URL (like Microsoft Entra)

Join Us for Office Hours​

Join us for our bi-weekly office hours every other Tuesday at 5 PM CET on our Discord server. It's a great opportunity to share your experiences, ask questions, and help shape the future of Tenzir with your valuable feedback!
